Square Cooling Tower

Open Circuit Cross Flow Cooling Tower

Author:Trlon Views: Time:2020-08-27
Open Circuit Cross Flow Cooling Tower

Brand : TRLONcfsCooling tower noise reduction treatment manufacturer
Product origin : CHINAcfsCooling tower noise reduction treatment manufacturer
Delivery time : 50 dayscfsCooling tower noise reduction treatment manufacturer
Supply capacity : 1 Million tons of water
cfsCooling tower noise reduction treatment manufacturer
cfsCooling tower noise reduction treatment manufacturer
TCH series of square cross-flow cooling towers, the main frame adopts channel steel as the main frame, and is equipped with other structural parts to ensure sufficient rigidity and strength of the overall structure. The side panels of the cooling tower are made of smooth glass fiber reinforced plastic protective panels, and the heat insulation layer is spread in the side panels to prevent external heat from entering the tower, and the effect of heat insulation and shock absorption is excellent. Modular rib design, good strength, rigidity, beautiful appearance, flexible and convenient assembly; the bottom basin is assembled with thickened glass fiber reinforced plastic, and waterproof rubber pads are installed between the bottom plates, which does not leak water, has good sealing performance and long service life. FRP material, acid and alkali resistance, effectively eliminate the shortcomings of easy oxidation and black surface.cfsCooling tower noise reduction treatment manufacturer

Features of Product

  1、Desined with a more robust tower structure,make the cooling tower more durable.cfsCooling tower noise reduction treatment manufacturer

  2、Deepened the depth of the water collecting basin to prevent water leakage and drain.cfsCooling tower noise reduction treatment manufacturer

  3、Equipped with optional intelligent electrical control cabinets.cfsCooling tower noise reduction treatment manufacturer

  4、Desined larger tower body so area of filling is larger, which means better heat dissipation performance.cfsCooling tower noise reduction treatment manufacturer

  5、Fillings with patent, better on heat dissipationcfsCooling tower noise reduction treatment manufacturer

  6、Rich models of the nozzles are used in TCH.cfsCooling tower noise reduction treatment manufacturer

  7、Positive triangle arrangement designed for the nozzles. According to the hydraulic characteristics of different nozzles, combined with the actual operating level change of the basin, the spacing and number of the nozzles are reasonably optimized to ensure uniform water distribution and full heat exchangere of the fillers.cfsCooling tower noise reduction treatment manufacturer

  8、More accurate testing and more model choices allow customers to choose the one they need most without worrying about thermal performance.cfsCooling tower noise reduction treatment manufacturer

  9、Noise control measures with test and simulation,create a more quiete enviroment.cfsCooling tower noise reduction treatment manufacturer
      10Drive System provide variable options on Motors and more durable with accurate reducer,anti-skid belt, imported NSK bearing.cfsCooling tower noise reduction treatment manufacturer

  Excellent Anti-drift Desin. Drive System provide variable options on Motors and more durable with accurate reducer,anti-skid belt, imported NSK bearing.cfsCooling tower noise reduction treatment manufacturer

Introduction to ConfigurationcfsCooling tower noise reduction treatment manufacturer

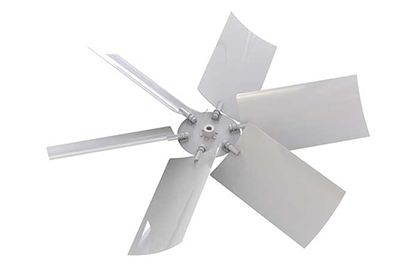

Hollow Type Axial FancfsCooling tower noise reduction treatment manufacturer

cfsCooling tower noise reduction treatment manufacturer

  Airfoil-shaped hollow blade fans are made from Aluminum extrusion alloy. Fan hubs are fabricated from hot-dip galvanized (HDG) circular plate with epoxy coated cast iron core and Aluminum blade camps. The fan blades are adjustable in pitch to allow for maximum utilization of rated horsepower and optimum performance. High efficient lower tip speed and light weight design ensure low power consumption and low noise level, thus and guarantee 100% performance.cfsCooling tower noise reduction treatment manufacturer

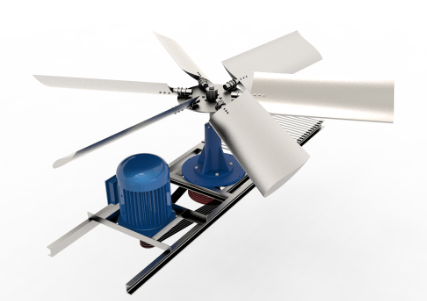

Transmission SystemcfsCooling tower noise reduction treatment manufacturer

cfsCooling tower noise reduction treatment manufacturer

  The fan motors are TEFC type with IP55 weather proof, Class E insulation. Fans are driven by vee belt and the speed can be adjusted by changing pulleys to meet different requirement. By locating the motor on top of fan stacks, the vee belt lengths are shorthen thus ensure linger belt life. Motor mounted in the outside air stream and with gear driven system are also available upon request.cfsCooling tower noise reduction treatment manufacturer

Distribution SystemcfsCooling tower noise reduction treatment manufacturer

cfsCooling tower noise reduction treatment manufacturer

  Open gravity fed water distribution basins with removable cover are made of FRPcfsCooling tower noise reduction treatment manufacturer

  You can choose 304 stainless steel or galvanized steel) and are designed for non-clogging operation and ease of inspection. Special design diffusion decks are placed on top of filler as a re-distribution layer to ensure full coverage of filler.cfsCooling tower noise reduction treatment manufacturer

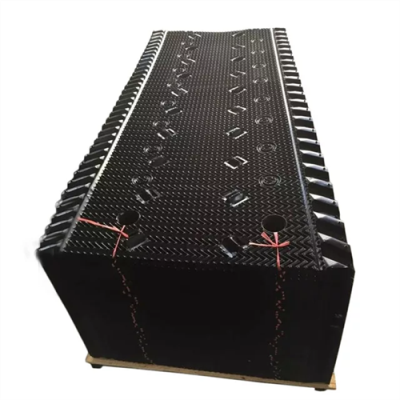

High Efficient FillercfsCooling tower noise reduction treatment manufacturer

cfsCooling tower noise reduction treatment manufacturer

  Fillers are vacuum formed of 0.4mm (1/64”) thick PVC film. Filler sheets configuration incorporates sloped flutes in both air intake and outlet sections and are high efficient wet deck media. The honeycomb shaped air intake louver section contributes minimum resistance to airflow and prevents ingress of foreign matters. The sloped flutes in the outlet section of filler sheets act as the primary drift eliminators to reduce droplets escaping through the exhaust air stream. Primary drift eliminat or ensures drift loss less than 0.005% of circulating water flow. The wet deck media with continuous triangular pattern is specially designed to provide maximum air/water contact and lower resistance ensuring high efficient heat transfer.cfsCooling tower noise reduction treatment manufacturer

Casing Panels and Cold Water BasincfsCooling tower noise reduction treatment manufacturer

  Casing, basins and fan stacks are made of FRP. The smooth and attractive gel-coat is applied on exterior surface for UV protection, chemical resistance and long life. It is light in weight and makes easier for assembly and transportation. Hot-dip galvanized (HDG) or all Stainless Steel (SS304 or SS316) casing and basins instead of FRP are also available.cfsCooling tower noise reduction treatment manufacturer

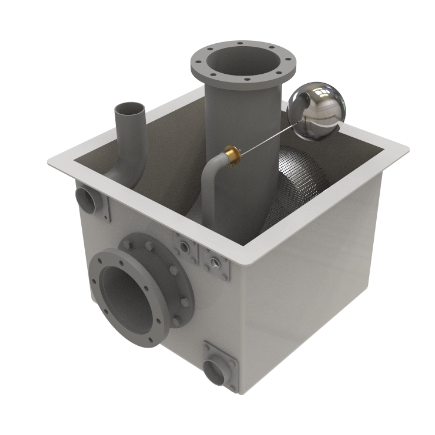

Sump TankcfsCooling tower noise reduction treatment manufacturer

cfsCooling tower noise reduction treatment manufacturer

  FRP cold water sump tanks contain all connection fittings and make inspection or maintenance of fittings easier. Depressed sump tanks provide basin depth and less chance of pump cavitation.cfsCooling tower noise reduction treatment manufacturer

Steel StructurecfsCooling tower noise reduction treatment manufacturer

  All supporting steel members are hot-dip galvanized (HDG) to minimize rust forming and corrosion , ensuring long service life. Stainless steel (SS304 or SS316) hardware members are also available upon request.cfsCooling tower noise reduction treatment manufacturer

Inspection DoorcfsCooling tower noise reduction treatment manufacturer

  Inspection door is furnished to provide convenient access to the interior for inspection, maintenance, adjustment of float valve, cleaning of the lift-out strainer and flushing of the basincfsCooling tower noise reduction treatment manufacturer
